LEVEL ADJUSTERS(FIXED TYPE)

FD-EII

•
•
•
• [Description of mark]

Feature

● Can be fi xed simply by anchor bolts.
　(Holes for anchor bolt are 14mm. 12mm anchor bolts of 12×70 is application size.)

Material

● FD-EII / SS400
● SFD-EII / SUS304

Finish

● FD-EII/Trivalent chromate plating

Application Specific Use

● Conveyors, machineries, etc.
※ Screw shaft is rotated, and is tilted slightly.

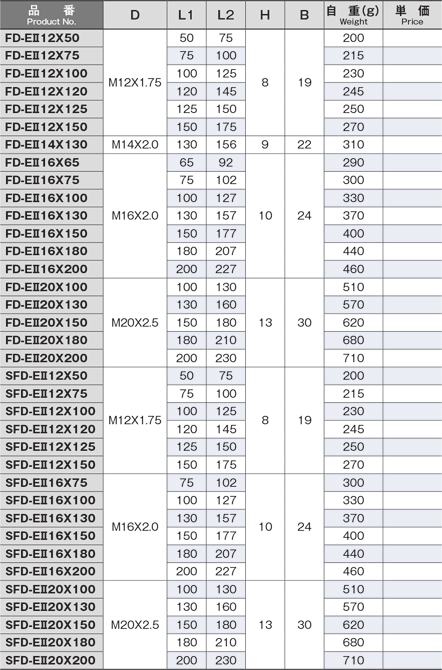

FD-EII12X100	FD-EII12X120	FD-EII12X125
FD-EII12X150	FD-EII12X50	FD-EII12X75
FD-EII14X130	FD-EII16X100	FD-EII16X130
FD-EII16X150	FD-EII16X180	FD-EII16X200
FD-EII16X65	FD-EII16X75	FD-EII20X100
FD-EII20X130	FD-EII20X150	FD-EII20X180
FD-EII20X200	SFD-EII12X100	SFD-EII12X120
SFD-EII12X125	SFD-EII12X150	SFD-EII12X50
SFD-EII12X75	SFD-EII16X100	SFD-EII16X130
SFD-EII16X150	SFD-EII16X180	SFD-EII16X200
SFD-EII16X75	SFD-EII20X100	SFD-EII20X130
SFD-EII20X150	SFD-EII20X180	SFD-EII20X200
