■Products list／Products Details

GROMMETS(FLAME RETARDANCY)

DSG・DULSG

Feature
● Weather-resistant, heat-resistant, ozone-resistant, aging-resistant and electrical properties are excellent synthetic rubber.
● Due to the use of approved material
(DULSG / Flame retardant material UL94 V-0),
　It is excellent in self-extinguishing and non-pollution, flame retardancy.
Material
● DSG / EPDM(Ethylene propylene rubber)
● DULSG / CR（Chloroprene rubber）
Application Specific Use
●Protect the cable from the edge of the circular hole was drilled in the panel.
Remarks
●With the closing hole of the panel does not immediately wire passing, can be avoid from dust.
●When you need to wire passing, replacement of grommet is not required if breaking the membrane.
Hardness
● 55℃± 5℃

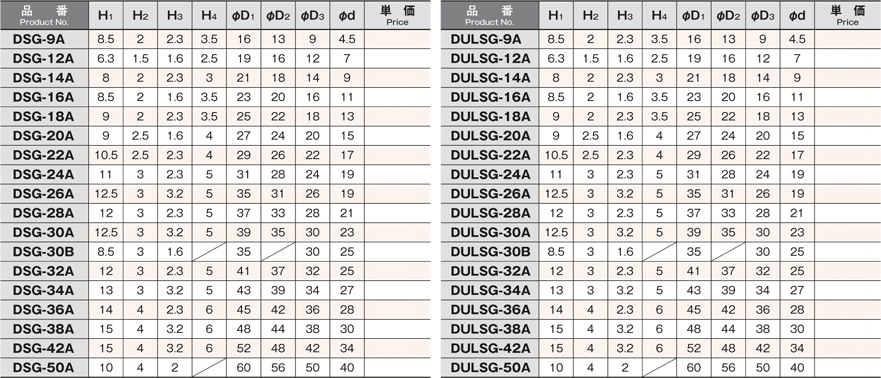

  • DSG-20A

Please click here for the details of each size→
