- Feature
- ● It is used extensively as a light load for trolleys and store fixtures,
furniture, other general industry mainly.
- Material
- ● Body / Cold rolled steel plate(SPCC)
Wheel / Rubber (R), nylon (N), nylon foil urethane (UR)
- Finish
- ● Body / Trivalent unichrome plating
- Application Specific Use
- ● Small and medium-sized equipment
- Remarks
- ● If the end of part number is S, singlepedal stopper is attached.
(It is lockable only rotation of the wheel.)

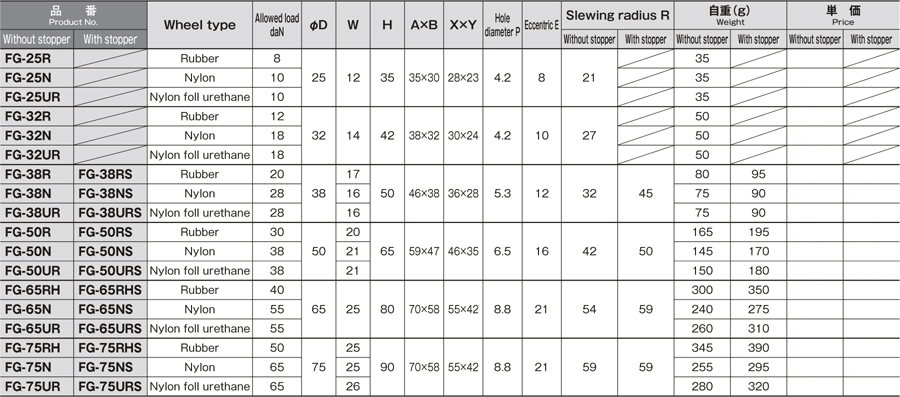

| Product No. |
Remarks |
Download |
Request a Quote |
| DXF |
STEP |
X_T |
IGS |
SAT |
| FG-25N |
|
|
|
|
|
|
|
￥100 |
| FG-25R |
|
|
|
|
|
|
|
￥130 |
| FG-25UR |
|
|
|
|
|
|
|
￥155 |
| FG-32N |
|
|
|
|
|
|
|
￥130 |
| FG-32R |
|
|
|
|
|
|
|
￥155 |
| FG-32UR |
|
|
|
|
|
|
|
￥180 |
| FG-38N |
|
|
|
|
|
|
|
￥200 |
| FG-38NS |
|
|
|
|
|
|
|
￥310 |
| FG-38R |
|
|
|
|
|
|
|
￥220 |
| FG-38RS |
|
|
|
|
|
|
|
￥330 |
| FG-38UR |
|
|
|
|
|
|
|
￥285 |
| FG-38URS |
|
|
|
|
|
|
|
￥395 |
| FG-50N |
|
|
|
|
|
|
|
￥355 |
| FG-50NS |
|
|
|
|
|
|
|
￥480 |
| FG-50R |
|
|
|
|
|
|
|
￥390 |
| FG-50RS |
|
|
|
|
|
|
|
￥530 |
| FG-50UR |
|
|
|
|
|
|
|
￥565 |
| FG-50URS |
|
|
|
|
|
|
|
￥690 |
| FG-65N |
|
|
|
|
|
|
|
￥540 |
| FG-65NS |
|
|
|
|
|
|
|
￥715 |
| FG-65RH |
|
|
|
|
|
|
|
￥610 |
| FG-65RHS |
|
|
|
|
|
|
|
￥795 |
| FG-65UR |
|
|
|
|
|
|
|
￥990 |
| FG-65URS |
|
|
|
|
|
|
|
￥1,165 |
| FG-75N |
|
|
|
|
|
|
|
￥595 |
| FG-75NS |
|
|
|
|
|
|
|
￥775 |
| FG-75RH |
|
|
|
|
|
|
|
￥680 |
| FG-75RHS |
|
|
|
|
|
|
|
￥865 |
| FG-75UR |
|
|
|
|
|
|
|
￥1,205 |
| FG-75URS |
|
|
|
|
|
|
|
￥1,355 |
