LEVEL ADJUSTERS

FD-C・H(SS)/SFD-C・H(SUS)

［Description of mark］

FD-C16-130

pdfOpen as PDF ebookSee a e-Catalog
Feature
● Load capacity is 10 tons or more because the saucer is forged. It becomes the load capacity by the screw diameter because screws are buckled first.
Thrust bearing is built-in the saucer.（FD-H・SFD-H)
Material
● Bolt・Nut
　 FD-C・H：SS400　,　SFD-C・H：SUS304
● Saucer
　 FD-C・H：SS400 forging　,　SFD-C・H：SUS304 forging
Finish
● FD-C・H / Trivalent chromate plating
Application Specific Use
● Medium / large machinery and conveyor, vending machines, etc.

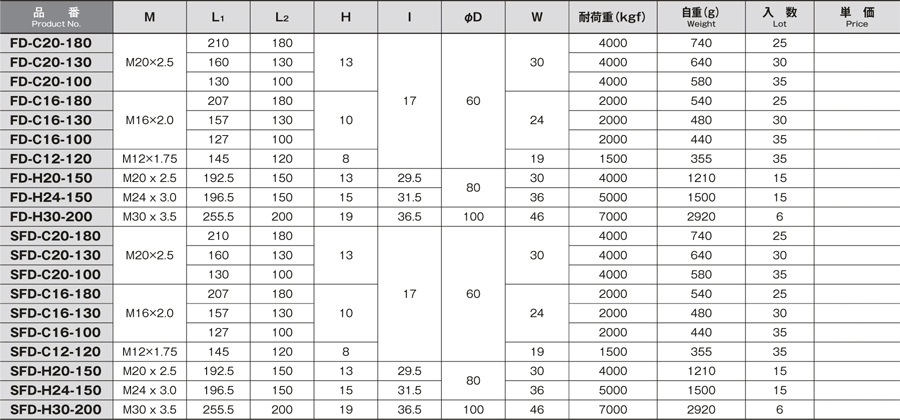

Product No. Remarks Download Request a Quote
DXF STEP X_T IGS SAT
FD-C12-120 ￥650
FD-C16-100 ￥830
FD-C16-130 ￥870
FD-C16-180 ￥980
FD-C20-100 ￥1,030
FD-C20-130 ￥1,130
FD-C20-180 ￥1,280
FD-H20-150 ￥5,400
FD-H24-150 ￥5,600
FD-H30-200 ￥8,400
SFD-C12-120 ￥2,700
SFD-C16-100 ￥3,400
SFD-C16-130 ￥3,500
SFD-C16-180 ￥4,400
SFD-C20-100 ￥4,700
SFD-C20-130 ￥4,850
SFD-C20-180 ￥5,400
SFD-H20-150 ￥12,000
SFD-H24-150 ￥15,400
SFD-H30-200 ￥25,400
Prodact No.
Remarks
Download
DXF
STEP
X_T
IGS
SAT
Request a Quote
FD-C12-120
FD-C16-100
Prodact No.
Remarks
Download
DXF
STEP
X_T
IGS
SAT
Request a Quote
FD-C16-130
FD-C16-180
Prodact No.
Remarks
Download
DXF
STEP
X_T
IGS
SAT
Request a Quote
FD-C20-100
FD-C20-130
Prodact No.
Remarks
Download
DXF
STEP
X_T
IGS
SAT
Request a Quote
FD-C20-180
FD-H20-150
Prodact No.
Remarks
Download
DXF
STEP
X_T
IGS
SAT
Request a Quote
FD-H24-150
FD-H30-200
Prodact No.
Remarks
Download
DXF
STEP
X_T
IGS
SAT
Request a Quote
SFD-C12-120
SFD-C16-100
Prodact No.
Remarks
Download
DXF
STEP
X_T
IGS
SAT
Request a Quote
SFD-C16-130
SFD-C16-180
Prodact No.
Remarks
Download
DXF
STEP
X_T
IGS
SAT
Request a Quote
SFD-C20-100
SFD-C20-130
Prodact No.
Remarks
Download
DXF
STEP
X_T
IGS
SAT
Request a Quote
SFD-C20-180
SFD-H20-150
Prodact No.
Remarks
Download
DXF
STEP
X_T
IGS
SAT
Request a Quote
SFD-H24-150
SFD-H30-200
